Fiat Doblo Maxi
Only for FIAT DOBLO 1,6 MultiJet 120k XL Plus

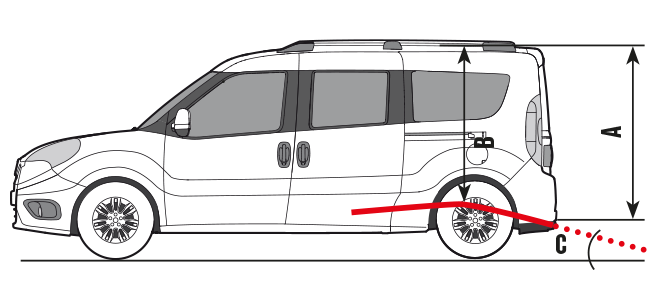

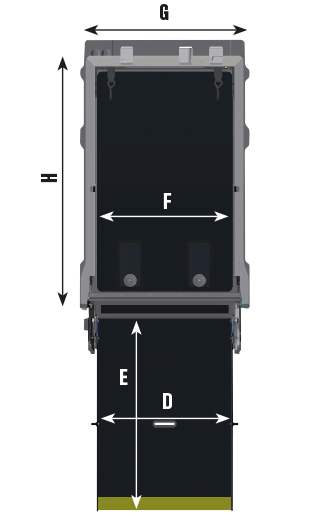

Dimensions
| A | entrance door height | 1 450 mm | 57,1 in |
| B | min. interior height | 1 435 mm | 55,9 in |
| C | ramp slope | 12° | 12° |
| D | ramp width | 762 mm | 30,0 in |
| E | ramp length | 1150 mm | 45,3 in |
| F | min. floor width | 775mm | 30,5 in |
| G | max. floor width | 780 mm | 30,7 in |
| H | foor length | 1345 mm | 52,9 in |

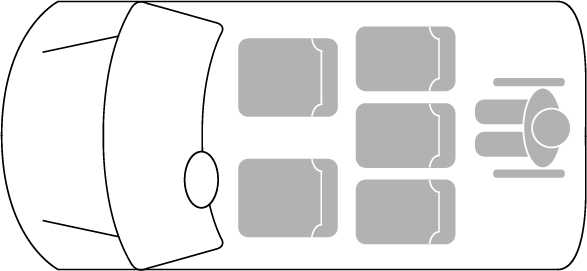

Seating capacity

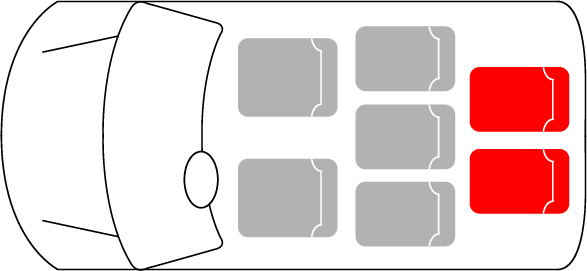

Also available as a 7 seated option
